Siemens Relais à Semi-conducteurs 3RF20501AA45 50 A Tension De Contact (max.): 600 V/AC 1 Pc(s)

Caractéristiques

• Courant nominal: 50
• Tension circuit de commande: 30
• Commande manuelle: Non

Informations techniques

Fréquence : 50/60 Hz

• Tension d’isolement : 600 V
• 1000 V/μs
• 1200 V

  Informations techniques

  Contenu: 1 pc(s)
  Courant de charge (max.): 50 A
  Indice de protection: IP20
  Tension de contact (max.): 600 V/AC
  Type de produit: Relais à semi-conducteurs

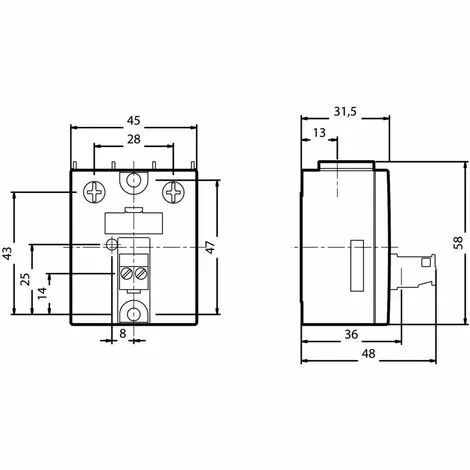

  Relais semi-conducteur Sirius 3RF20, 45 mm de largeur

  Semiconductor relay, 1-phase 3RF2 Overall width 45 mm, 50 A 48-600 V / 4-30 V DC screw terminal Blocking voltage 1200 V solid-state relay SIRIUS 3RF20 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant. The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections. In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories. Simple, efficient and always up to date – SIRIUS modular system.
