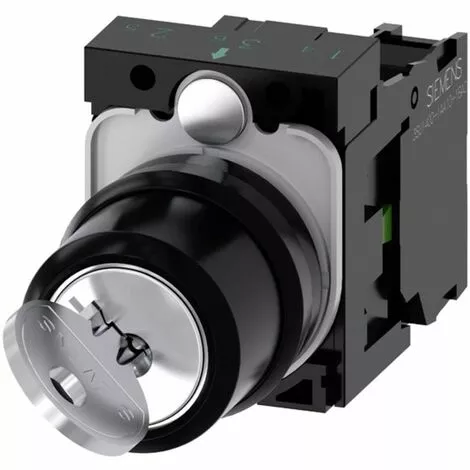

Siemens 3SU1100-4BF11-1BA0 Commutateur à Clé Collerette Plastique Noir, Gris 1 X 90 ° Décrochage Par Clef 1 Pc(s)

Caractéristiques

• Type de produit: A sélecteur
• Fonctions: A accrochage
• Rappel: Collerette
• Matière: Plastique
• Couleur: Noir
• Caractéristiques: A clé

Informations techniques

Connexion (composants): élément de contact externe
Contenu: 1 pc(s)
Couleur: noir, gris
Diamètre de montage: 22 mm

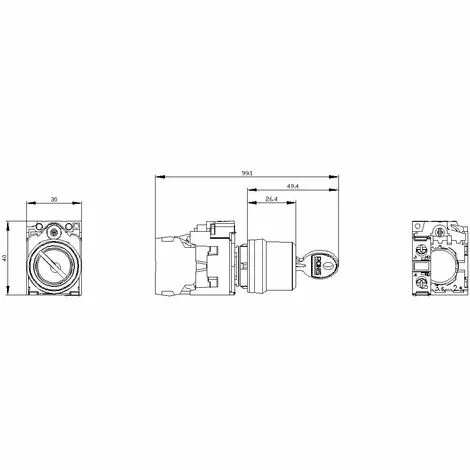

Dimensions: (l x H) 30 mm x 40 mm
Dimensions produit, hauteur: 40 mm
Dimensions produit, largeur: 30 mm
Durée de vie (mécanique): 1 000 000
Durée de vie (électrique): 10000000
Famille de couleurs: noir, gris
Fonctions (interrupteur/bouton): à accrochage
Forme (type): rond
Indice de protection: IP66, IP67, IP69K
Motif d’impression: sans
Spécificités de l’interrupteur/bouton: collerette plastique
Température (max.): +70 °C
Tension de commutation: 500 V
Type de produit: Commutateur à clé

Commutateur à clé 3SU

RONIS key-operated switch, 22 mm, round, plastic, lock number SB30, with 2 keys, 2 switch positions O-I, latching, 10:30h/13:30h, key removal O+I, with holder, 1 NO, screw terminal, possible special locks: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic. An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation. As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility. The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available. Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions. Note: Complete unit, delivery includes holders and modules. SIRIUS ACT – Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

• • Contenu de la livraison

    • Support et élément de contact inclus.

      • Informations supplémentaires

        avec serrure RONIS, Serrure Nr. SB30 Illustration similar.
