Siemens 3SE5000-0AE10 Tête De Commande Noir 1 Pc(s)

Caractéristiques

• Type de produit: Commande rotative
• Couleur: Noir
• Caractéristiques: Lumineux

Informations techniques

Contenu: 1 pc(s)
Convient pour (détails): Interrupteur de position 3SE51/52
Couleur: noir
Durée de vie (mécanique): 1.5E7
Famille de couleurs: noir
Modèle (général): Galet en plastique
Motif d’impression: sans
Poids: 15 g
Température (max.): +85 °C
Type de produit: Tête de commande

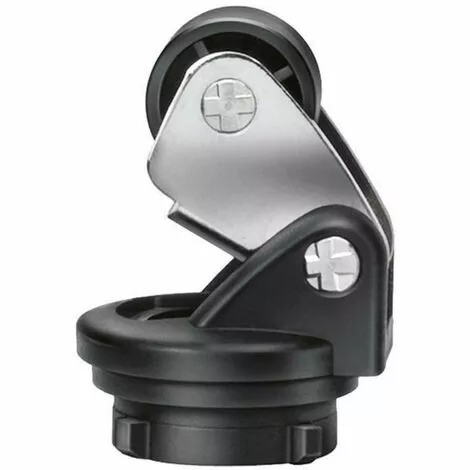

Actuator head for position switch 3SE51/52 roller lever, shape E, metal lever

Actuator head for position switch 3SE51/52 Roller lever, Form E, with Metal lever and Plastic roller 13 mm according to EN 50047 actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment. The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input. Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available. Safety is a SIRIUS business.
